Saturday, 16 April 2011

Huge Amethyst Ring..

A sneak peek into next job, one more for colin, oversize head and shank for a LARGE amethyst.

This is the stone, usb jack for proportion :)

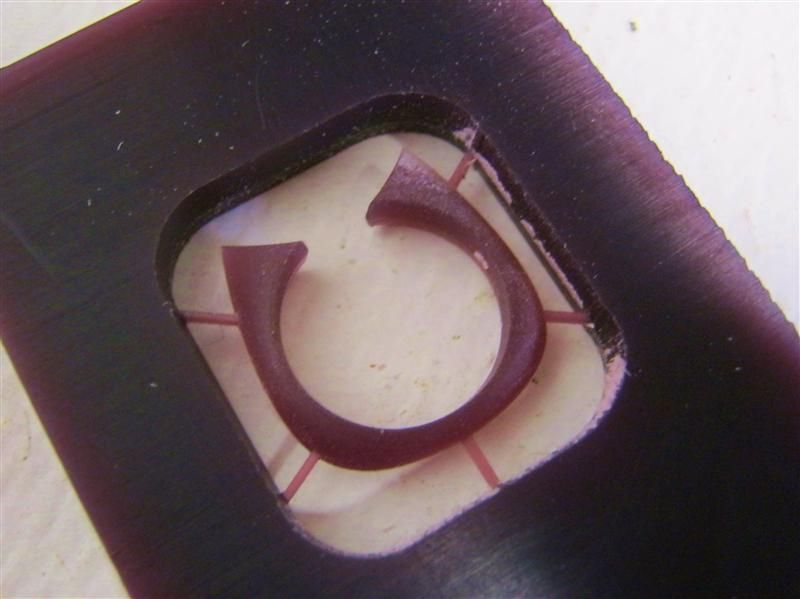

The shank is not worth going into detail on, just a pic, simple flip cut

SOme pathing imagery

Half the job to be cut

Roughing the rotary pass

Finishing the Rotary Pass

Top Down Roughing

Top Down Finishing

Melt some tube!

Hook some oversize wax into the lathe :)

Surface it

Load into Mill



Roughing COmplete

Finishing Starts

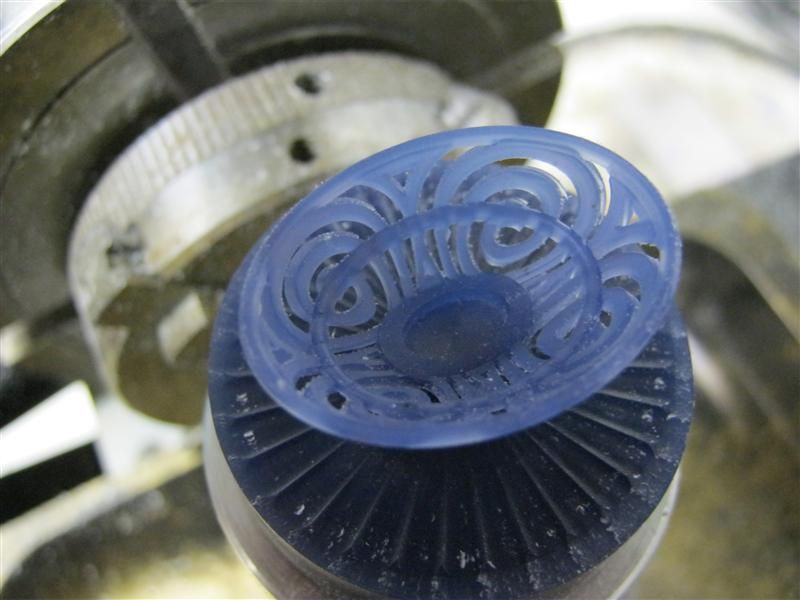

Finishing Finished.. 5 hours later....

Rotate Fixture upwards 90'

Zero out X and Y

Zero out Z

Top roughing

ROughing done!

Change cutter and rezero fo final pass


Finishing pass done!

Cutoff Profile operation

and she is done.. phewwwwwww
